How it all Started

The word neon comes from the Greek "neos," meaning "new."

Neon gas was discovered by Sir William Ramsey and Maurice. W. Travers in 1898 in London.

The events leading up to its discovery discribed below courtesy of UCL 2010.

In 1895, Henry Meirs, at the British Museum, told Ramsay that, on heating, a mineral cléveite gave off a gas that Meirs though might be nitrogen. Ramsay thought that it might be a compound of argon. He sent out his technician to a minerals dealer for a specimen of cléveite and, in two days, he showed that it was a new inert gas, helium, the spectrum of which Sir William Crookes had observed from the light of the sun in 1868. With an atomic weight of 4, it fits between hydrogen and lithium, in the same group as argon.

They were now faced with an almost insuperable problem: they have found the first and the third member of the Group, and now need to find the intermediate member, and Ramsay says: "Here is a supposed gas, endowed no doubt with inert properties, and the whole world to find it in". After 2 years, he decided that it might be hiding in the atmosphere. At the Royal Institution in Piccadilly, Dewar had liquefied air in 1872. Ramsay and his student, Maurice Travers , cooled bulbs of argon in liquid air, and separated off the uncondensed portion. Under an electrical discharge it gave blaze of crimson light, and they called it Neon, the newcomer.  (source: University college london 24/04/2010)

Believe it or not “neon” (this term is used to describe the effect as opposed to the gas) was first conceived in 1675, when the French astronomer Jean Picard observed a faint glow in a mercury barometer tube. When the tube was shaken a glow called barometric light occurred, but the cause of the light (static electricity) was not then understood.

As time went by our knowledge of electricity became more profound and by 1855 the Geissler tube named after Heinrich Geissler, a German glassblower gained control of an electric arc; Gas in the tube was placed under low pressure and an electrical voltage was applied, the result was Light! This light came from the bombardment of free electrons. As one electron left an atom and then joined another atom a photon of light is emitted and depending on the atom of gas being used depends on the "colour" of  light from the photon. Neon being red/crimson. Sir William Crookes worked with Geissler tubes further developing them and experimented with objects in the tube and magnetic fields leading to x-ray tubes and the pre TV, radio and rectifier valve experiments. As soon as we were able to generat electricity and not use batteries, many people experimented with applying electric power to tubes of gas. Several electric discharge lamps or vapor lamps were invented from 1900 onwards in Europe and the United States. At this time the phenomenon was simply defined as;

 “Electric discharge lamp is a lighting device consisting of a transparent container within which a gas is energized by an applied voltage, and thereby made to glow.“

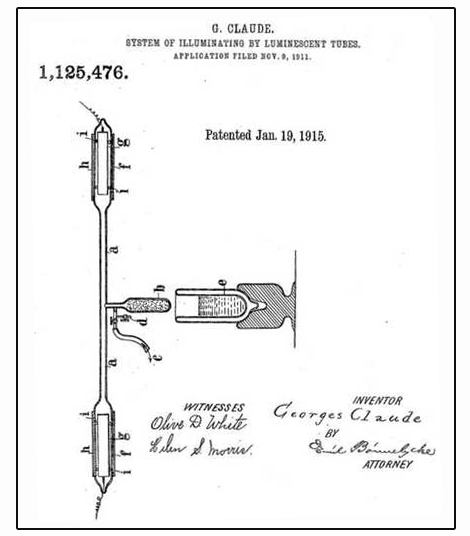

The French engineer, chemist, and inventor Georges Claude, was the first to apply an electrical discharge to a sealed tube of neon gas to create a lamp. This was around 1902. Over the next few years Claude worked with various emitters and gas pressures and Voltage/Ampage combinations till Georges Claude was able to display the first neon lamp to the public on December 11, 1910, in Paris at the Paris Auto Convention.

In 1912 Jaques Fonseque, Claude’s associate, sold the first commercial sign to a Paris barber. Then in 1913, 1000mm tall letters were installed on the Champs-Elysees to read out “CINZANO.” The art of neon  had started.

In 1922 the first neon signs were installed in Holland by the Haaxman Brothers.

 In 1923, Georges Claude and his French company Claude Neon, introduced neon gas signs to the United States, by selling two to a Packard car dealership in Los Angeles. Earle C. Anthony purchased the two signs reading "Packard" for $24,000. Neon lighting quickly became a popular fixture in outdoor advertising. Visible even in daylight, people would stop and stare at the first neon signs.

Before Claude harnessed the beauty of neon gas signs in America. Signs were made with tubes that used a carbon dioxide fill. The carbon dioxide signs were made by a man called Moore.  The neon gas offered a stable balance and reliability over carbon dioxide.

As time proceeded developments and discoveries occurred from time to time. Starting with colours.  In order of discovery were blue (Mercury), white (Co2), gold (Helium), red (Neon), and then different colors from phosphor-coated tubes. The mercury spectrum is rich in ultraviolet light (UVC) which in turn excites a phosphor coating on the inside of the tube to glow. Phosphors are available in most colours. Together with coloured glass the full spectrum is Available. This is another story though.

The most recent developments in “Neon” lighting is the use of Electronics to control the arc in the lamp and the power used. Switch mode power supplies with built in electrical protection were developed in the 1980s and now all Neon Signs and Neon Lighting is protected by sophisticated electronics for safety and economy.

The most recent development (circa 2004) is an environmental development. Today all neon tubes are 100% recycled, the glass is separated from the electrodes and mercury gas vapor. The glass is then re-used; the mercury is distilled and reused. The electrodes are made from Iron and are melted down for reuse, they could return as a part on your next dishwasher!

So neon is today a very modern light source and is the most environmentally friendly light source of all for signage and any other use you care to mention.

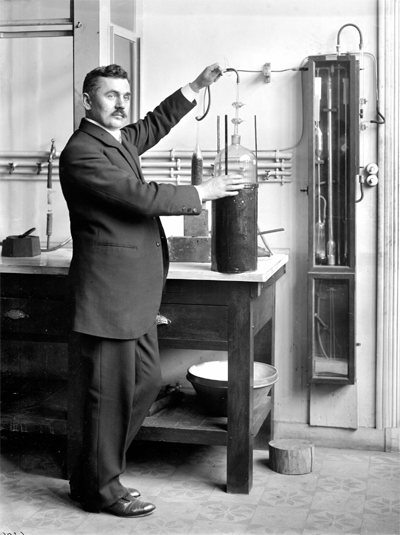

Here Georges Claude is stood with apparatus. It is apparent that the box fastened to the wall is a Mcleod guage used for measuring high vacuums. I used a very similar guage in the 1980s to measure vacuums in tubes made at Oldham Signs in Leeds.

The bottle being handled by Claude will have likely contained gas (probably 100% neon). Alternatively,  It is possible this was early experiments, The glass bottle may have been evacuated and used to calobrate the Mcleod guage but not likely or to evacuate gas tubes but again not likely. If it is true and the bottle contains 100% neon gas then the bottle could not have contained "preasurised" neon gas as the ground joint would have separated, therefore the gas in the bottle would be less than one atmosphere as are todays glass gas flasks like I buy to fill my neon tubes. the twin taps  you can see on the outlet are used as "gates" to allow tiny amounts of gas to travel into the manifold and can be measured with the mcleod guage. Note the large bath of Charge mercury at the bottom of the "box" cabinet, this is driven into the Vacuum measure by the 1000mBar (or so) of atmosphere acting on it. Modern McLeod guages are much smaller.

Image courtesy of  Boyer—Roger Viollet/Getty Britannica online

Copy right:  Julia Bickerstaff 2010

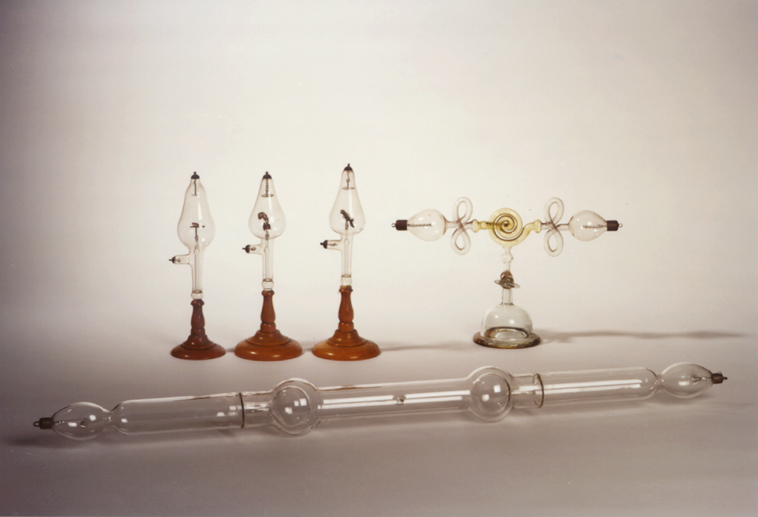

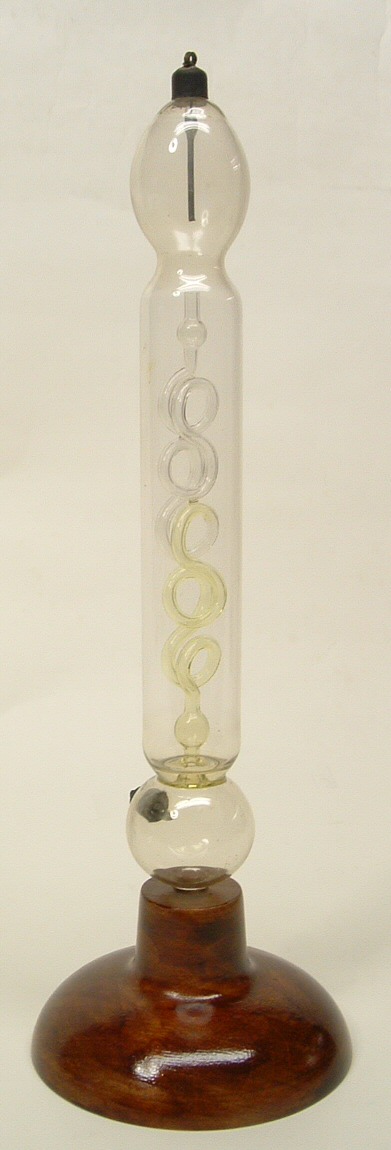

Geissler and Crookes tubes

 Image copyright from The Cathode Ray Tube Site http://members.chello.nl/h.dijkstra19/
